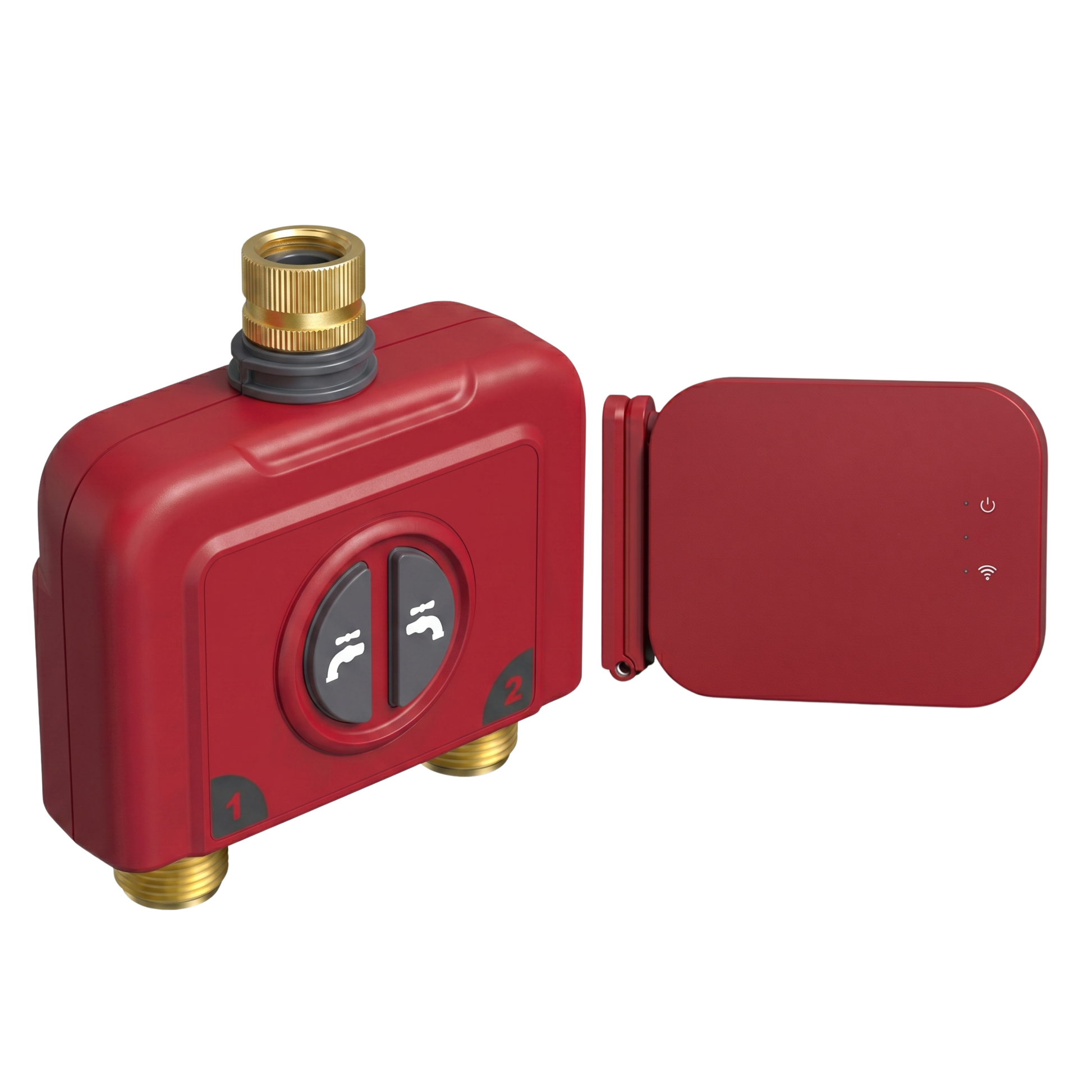

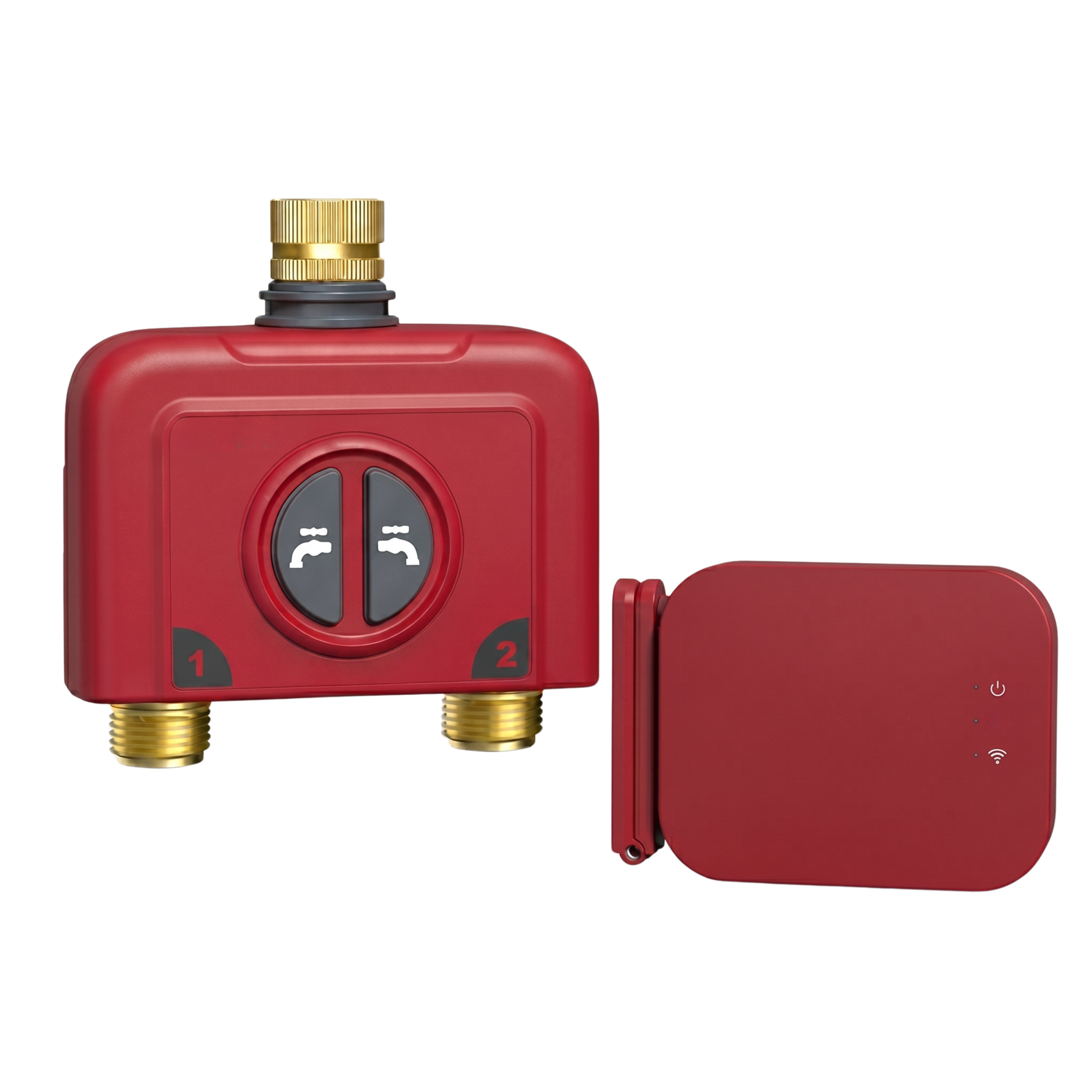

Ethernet-Enabled Dual Zone Hose Timer with Valve Control System

Smart Control Across Two Zones

This innovative irrigation controller is designed to efficiently manage two separate watering zones, making it perfect for various outdoor spaces such as gardens, lawns, and flower beds. With durable brass fittings for secure hose connections, this system ensures reliable operation. The included Ethernet gateway allows for both wired and wireless 2.4 GHz connections, supporting up to 8 compatible irrigation devices. An integrated inlet filter minimizes debris entering the valve, while the electronic valve coil effectively directs water flow between zones during use.

Customize Every Watering Cycle

Each zone can store as many as 6 unique watering schedules, offering a high degree of programming flexibility. Users can select from various modes, including standard irrigation, cycle and soak options, and misting intervals to cater to diverse watering needs. The scheduling feature accommodates daily, odd-day, even-day, and specific weekday programming, as well as intervals ranging from 2 to 30 days. Weather and moisture data inputs can adjust watering schedules accordingly, while seasonal runtime can be scaled between 10% to 200% for monthly modifications. The gateway supports a communication range of up to 820 feet under optimal conditions.

Keep Water Usage in View

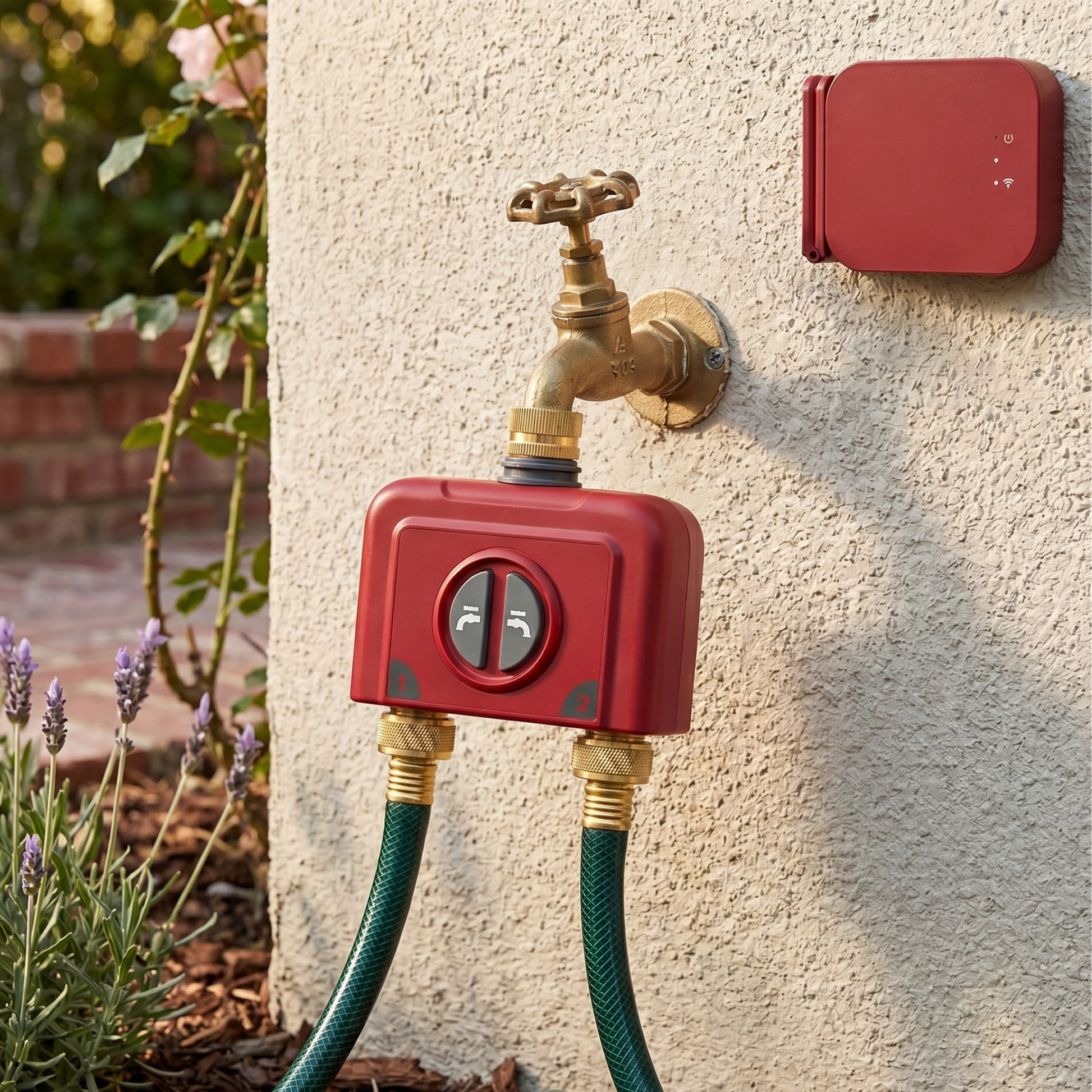

This controller connects seamlessly via WiFi or Ethernet without needing manual network changes during setup. A battery-powered control unit, housed in a sealed compartment, provides reliable power for outdoor use. Additionally, the integrated flow monitoring system tracks water usage for the last irrigation cycle, maintains a 30-day history, and offers a 12-month archive with a variance of ±5%. Alerts will notify users of any irregular flow patterns or changes in connection status as detected by the system.

Product Benefits:

• Dual-Zone Watering: Independently controls two irrigation zones from one controller.
• Flexible Connectivity: Supports both 2.4 GHz WiFi and Ethernet through the included gateway.
• Programmable Scheduling: Stores up to 6 watering schedules for each irrigation zone.
• Water Usage Tracking: Records irrigation history for the last cycle, 30 days, and 12 months.
• Expandable Device Support: Pairs with up to 8 compatible irrigation devices through one gateway.

Specification:

• Material: Brass inlet and outlet valve assembly
• Power Source: Battery-operated control unit
• Network Interface: Ethernet gateway with 2.4 GHz WiFi support
• Paired Devices: Up to 8 compatible irrigation devices
• Communication Range: Up to 820 ft under stated operating conditions
• Programming Capacity: Up to 6 schedules per irrigation zone
• Watering Modes: Standard irrigation, cycle and soak, misting interval
• Schedule Options: Daily, odd days, even days, weekday selection, and 2 to 30-day intervals
