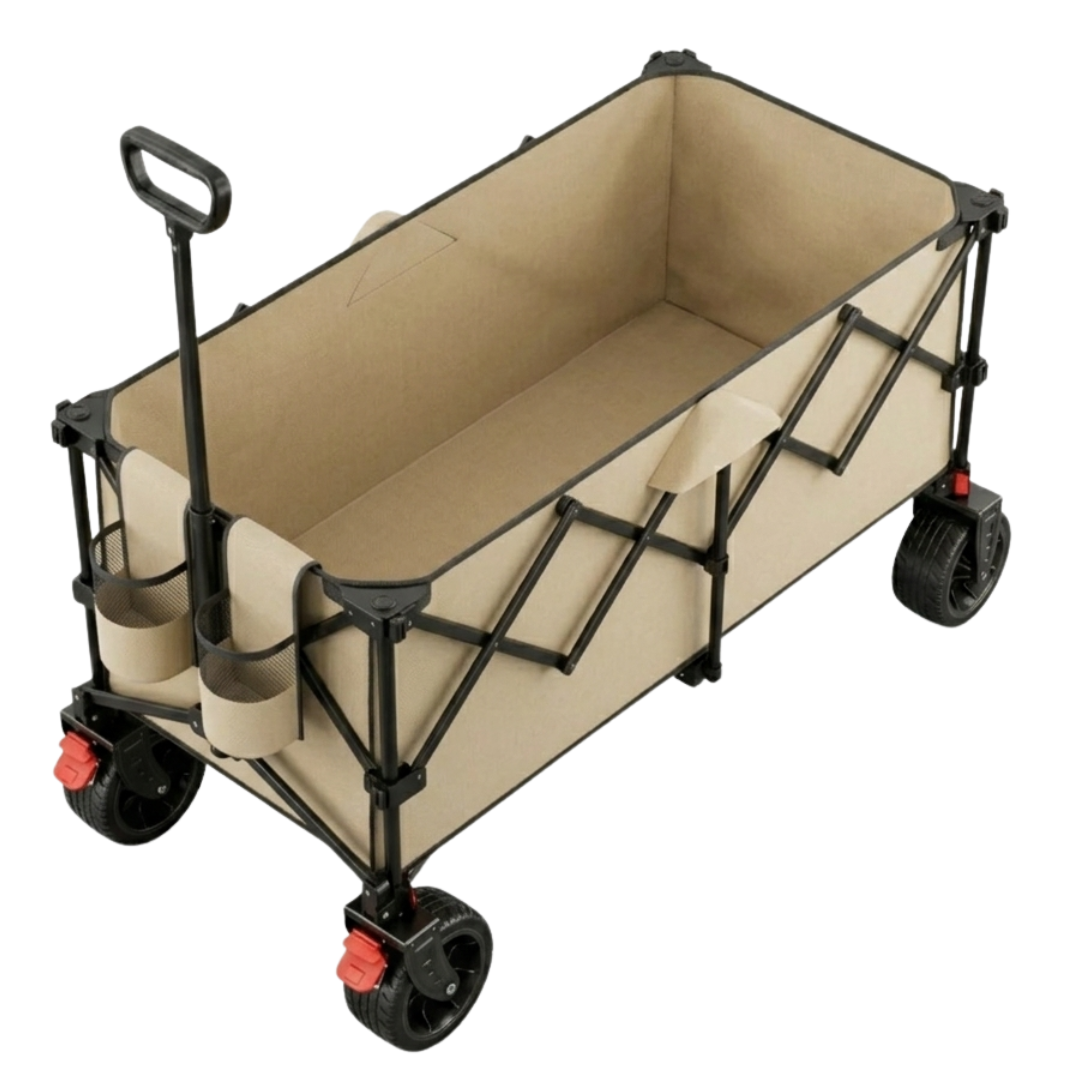

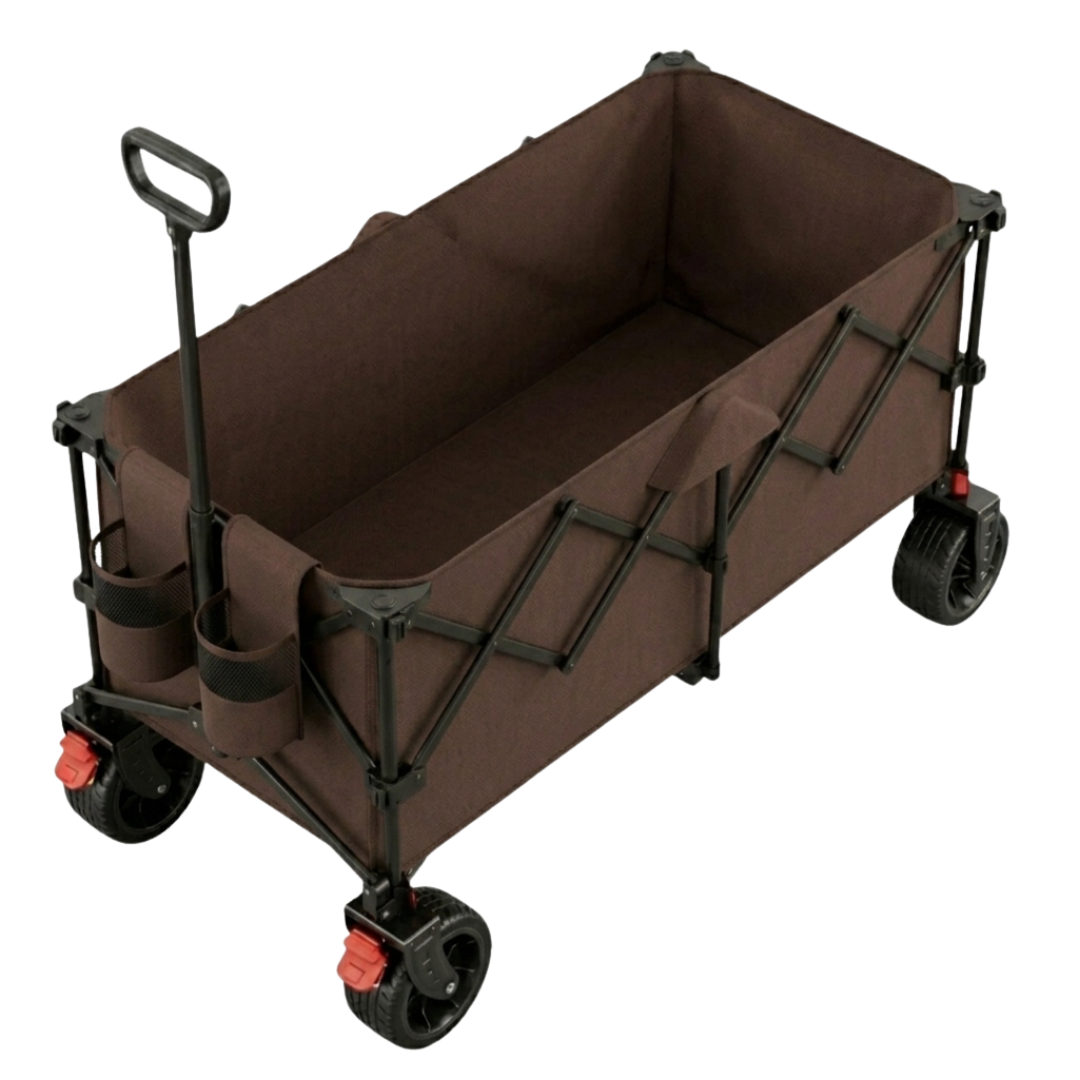

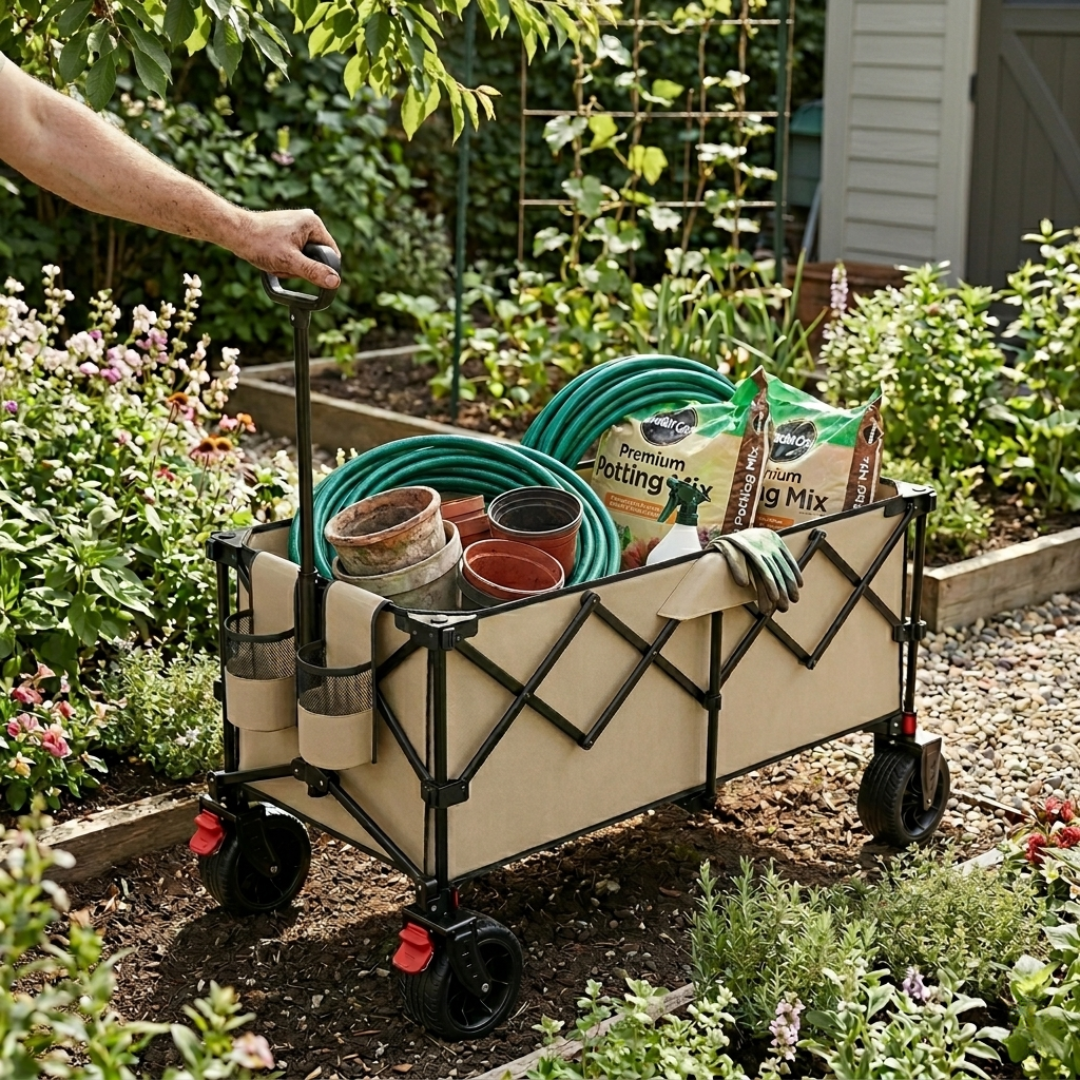

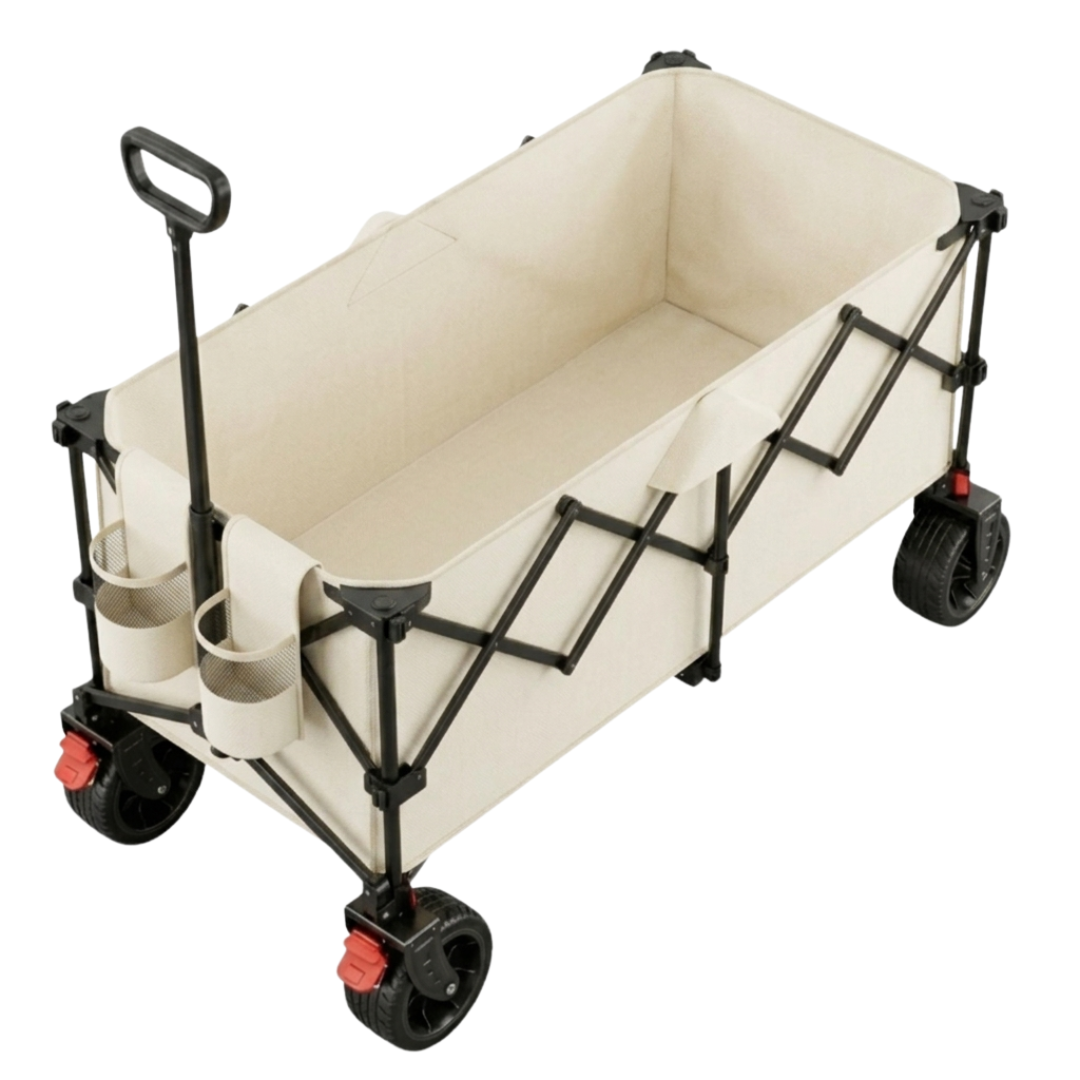

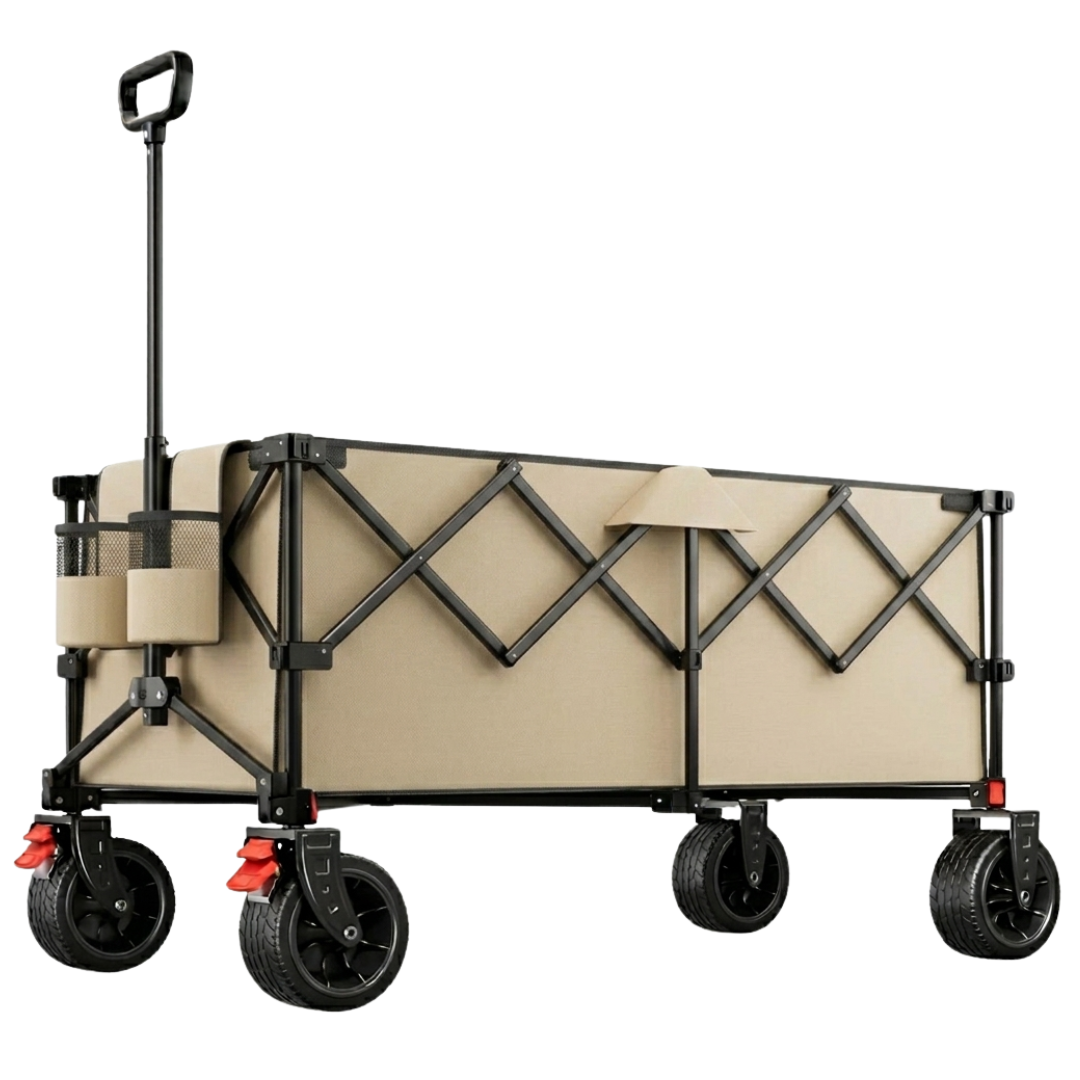

Folding Utility Cart with Steel Frame – 500 lb Capacity

Product Benefits

• Load Path System: The sturdy frame effectively channels weight through its base rails and wheel contact points.
• Cargo Layout Zone: The rectangular frame design establishes a dedicated area for organizing items being transported.
• Wheel Rotation System: The front caster wheels enable 360° rotation for enhanced steering precision.
• Foldable Mechanism: The dual hinge points facilitate a smooth transition from a working position to a compact storage form.
• Adjustable Handle: The handle features a sliding lock tube that adjusts from 18.1 to 33 inches for versatile pulling options.

How the Frame Carries Load

The design incorporates a robust carbon steel structure engineered to support a load capacity of up to 500 pounds across its primary base rails. The cargo area follows a rectangular layout that helps maintain stability during weight distribution. Durable 400D Oxford fabric is securely attached at the perimeter anchor points, which connect to the steel framework. The force transfer is managed through the lower rail system into the axle components.

Steering and Wheel Movement System

The wheel assembly features pneumatic casters with the ability to rotate fully on the front axle. Each wheel is mounted on dual bearing hubs, ensuring smooth directional rotation as per steering adjustments. The spacing of the axles allows for easy movement over various terrains, including sand, gravel, and grass. The handle height can be adjusted between 18.1 and 33 inches using a sliding lock mechanism complete with defined position stops. The folding joints are strategically placed at two main hinge points along the side rails, allowing for easy conversion into a compact form for storage.

Folding Steps and Storage Position

The folding process condenses the frame into a compact size measuring 23.7 × 13.38 × 9 inches. The side rails fold inward at the hinge points while the base collapses along a central pivot. The handle can be detached via a locking collar and fits neatly alongside the folded structure. The fabric panels compress within the folded outline without needing to be removed. This compact form is ideal for fitting into vehicle trunks or garage shelving.

Specifications

• Unfolded Dimensions: 38.6 × 46.4 × 23.7 in
• Folded Dimensions: 23.7 × 13.38 × 9 in
• Handle Range: 18.1 to 33 in adjustable
• Product Weight: 18 lb
• Load Capacity: Up to 500 lb
• Wheel Type: 4 in pneumatic caster wheels
• Wheel Rotation: 360° swivel (front)
• Product Material: Carbon steel frame with 400D Oxford fabric
• Included Components: Folding wagon cart, detachable handle assembly
